Pressure Transmitter 0-60 Bar

Product Overview

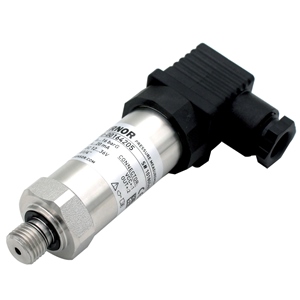

PM20S pressure transmitter is made from high-quality silicon piezoresistive sensor. The piezoresistive sensor is packaged in stainless steel housing. The PM20S pressure transmitter is precision engineered to fit most industrial pressure measurement.The compact and rugged design makes these pressure transmitter suitable for applications including process control systems, hydraulic systems and valves,refrigeration and HVAC controls,level measurement and test equipment.

A wide range of process connection and electrical connection options are available to meet almost requirement.

Features

- Measuring ranges from 100mbar to 600bar

- Absolute, gauge and sealed gauge

- Accuracy: ±0.5%FSO

- Calibrated and temperature compensated

- Stainless steel construction

- Piezoresistive pressure sensor design

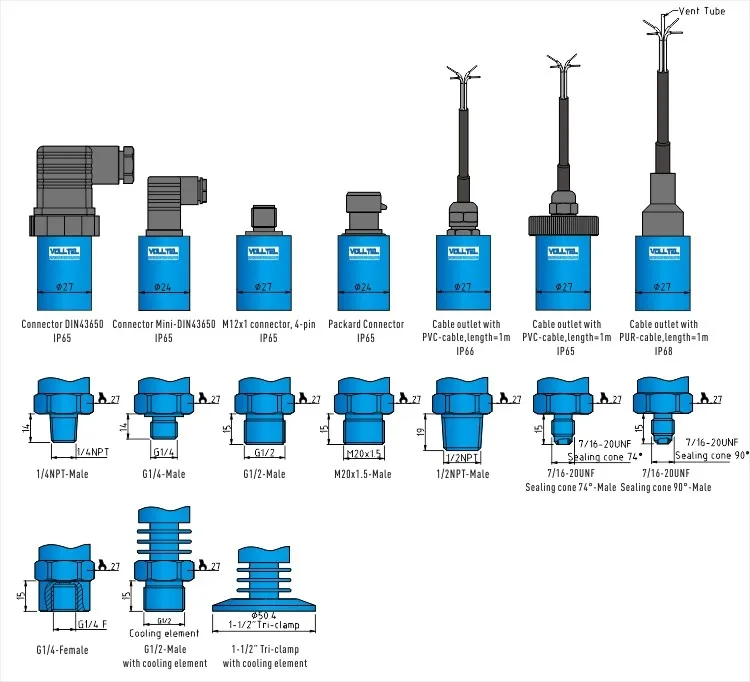

- Variety of Pressure & Electrical connections

- Output 4...20mA,0...10V,0...5V and others

Applications

- Process control systems

- Refrigeration and HVAC controls

- Hydraulic systems and valve

- Machine building

- Pumps and compressors

Performance Specifications

1. All values measured at 25°C(77°F)

2. Including non-linearity, hysteresis and repeatability.

3. 0°C to 50°C(32°F to122°F) with reference to 25°C(77°F).

The listed specifications and dimensions are subject to change without prior notice.

Dimensions in mm

Mounting location

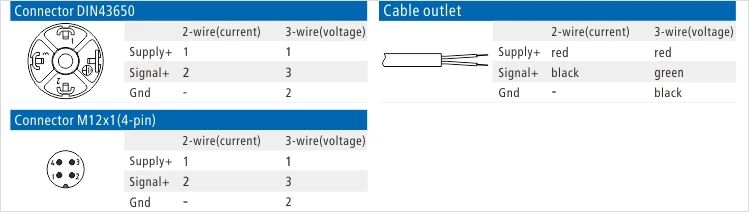

Connection Diagrams

Ordering Information

Note: Please contact us for product Datasheet

Model / Measuring range / Output signal / Supply Voltage / Electrical connection / Process connection

Correct specification examples: PM20S pressure transmitter- 0~10barG - 4~20mA - 24VDC - DIN43650 - G1/4 male
